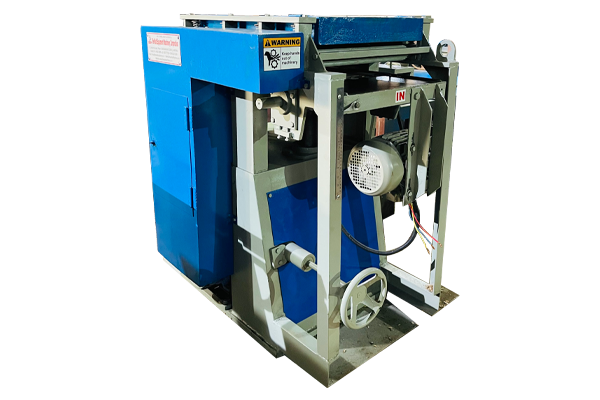

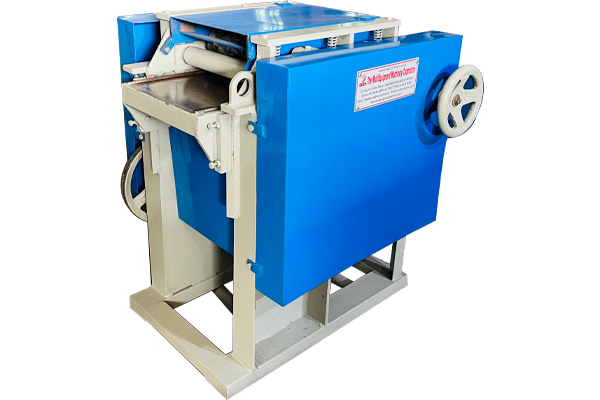

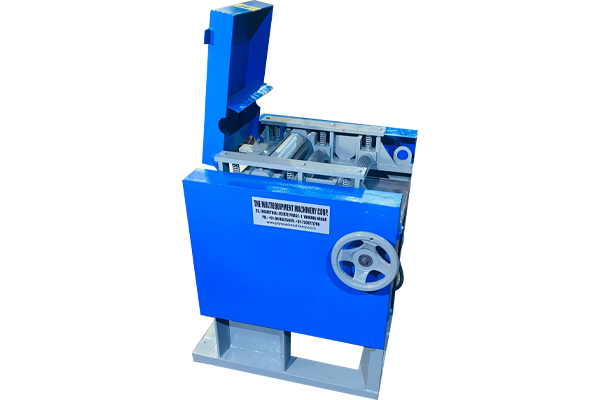

Thickness Planer Machine
Our Thickness Planers are high standard thicknessers, when you need superior construct, quality consistency and production capacity from your machine, Go for one side thickness planer for single side. Go for both side thickness planer to get double production-double finish at a single go.
Enquiry Now
| MODEL/SPECIFICATIONS | MMC-STP-12 | MMC-OTP-13 |
|---|---|---|
| Max Planning Width | 610/241 | 610/24 |
| Max Planning Width | 610/24 | 61024 |
| Max Working Thickness | 180/7 | 180/7 |
| Length Of Thickness Table | 900/35 | 900/35 |
| Min Length Of Work Piece for Thicknessing | 178/7 | 178/7 |
| Feeding Speed | 24E/MIN | 24F/MIN |
| Cutter Block Diamater | 110MM | 110MM |
| Cutter Block Speed | 4000 RPM | 4000 RPM |
| Number of Blades | 04NO | 08NO |
| Power Required | 2.2KW | 3.7KW |
| Feed Roolers | 02NO | 03NO |
| Upper Cutter Rollar Power Required-HP | 3HP | 3HP |
| Bottom Cutter Roller Power Required-HP | - | 2HP |
| Approx. Weight Of Machine-Kg | 400KG APPROX | 600 KG APPROX |
